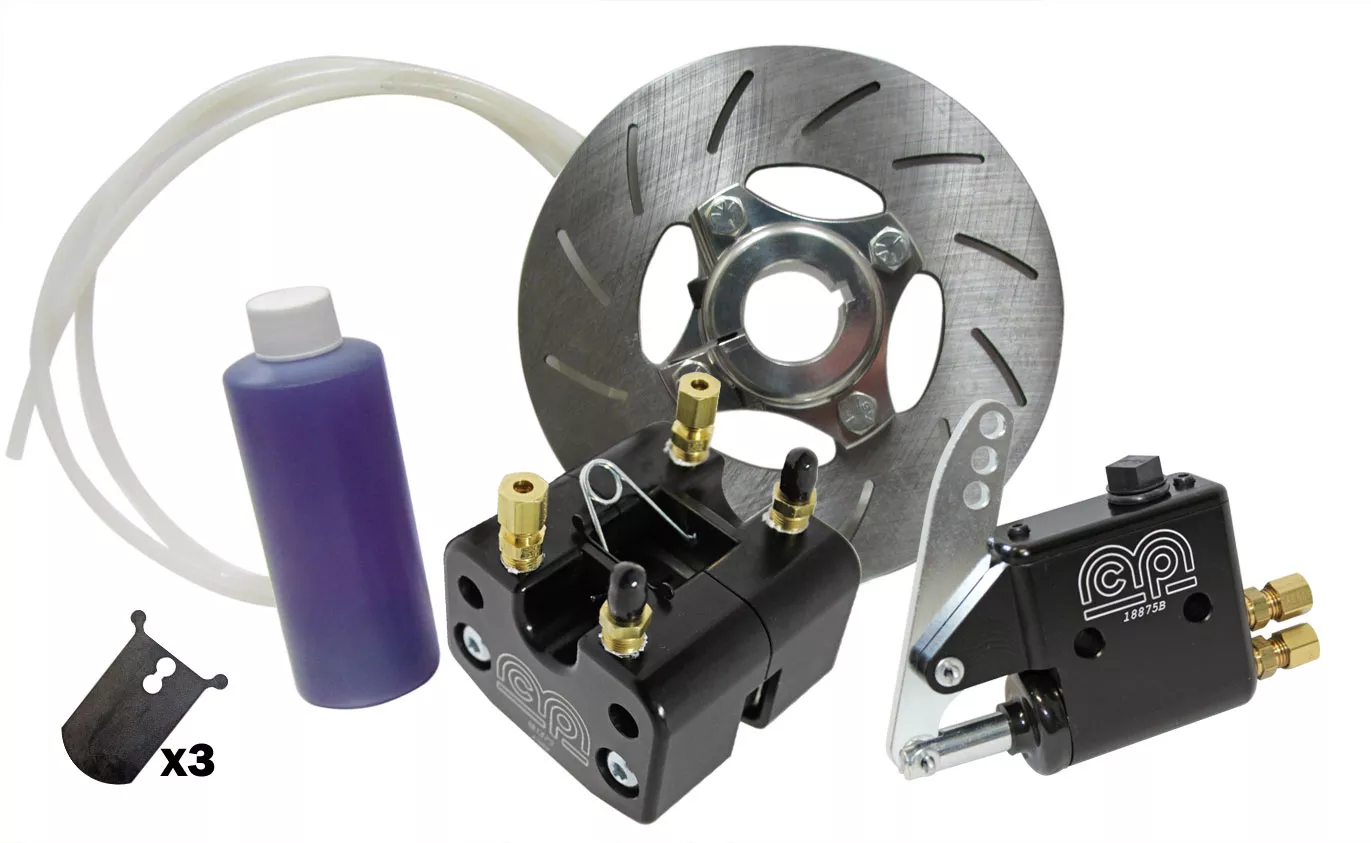

MCP Hydraulic Brake Kit (Shimmable) Black | 1″ or 1-1/4″ Bore

Description

Product Specs

• Brand: MCP
• Material: Aluminum
• Finish: Anodized Black
• Type: Hydraulic
• Shimmable
• Axle Size / Bore: 1″ or 1-1/4″
• Keyway: 1/4″

Includes:

• (1) Aluminum Brake Caliper (MCP 131375)
  – Includes Pads
• (1) Aluminum Master Cylinder (MCP 750)
  – 3/4″ Piston
• (1) 7.1″ Brake Rotor (MCP 711.12)
  – 3/16″ Width (~1.5 lbs) or 1/8″ Width (1.0 lbs)
• (1) 1″ or 1-1/4″ Rotor Hub (MCP 125L)
  – 3″ Bolt Hole Circle
  – 1/4″ Keyway
• (4) MCP Shim (MCP 1184)
  – One comes pre-installed on the caliper
  – Shims allows adjustment for narrow rotor widths
• (1) 3/16″ Brake Line x 8′ (600515)
• (1) Dot 5 Silicon Brake Fluid (600518)
  – 4 oz bottle

Features:

• Commonly used on Micro Sprints, Mini-Sprints, Racing Go Karts, Recreational Go Karts, Quarter Midgets, Mini-Cup cars, Jr. Dragsters, Racing Lawn Mowers, Racing Barstools, and hundreds of motorsports applications.
• For 1/4″ wide brake rotors
• Exclusive design allows it to be adjusted for use with other rotor thicknesses (.125″ to .25″)
• Comes in 2 halves, which are then both mounted to a caliper bracket or brackets through the 2 bolt holes.
• The bolt hole spacing is 2.25″ center-to-center and they fit 3/8″ bolts.
• Measures 3-1/4″ x 3-1/8″ x 3-3/16″
• For 3/16″ nylon brake line
• Comes with fittings and bleeders
• Brake Pads are Included
• For best results we recommend 3-4 shims (MCP1184)
